Specification
| FRAME |
Size |
480, 520mm |
| Color |
Agate BLUE, Deep GRAY, Mistletoe KHAKI |
| Frame |
Cr-Mo Mid-size TIG Welding |
| Fork |
High-Tensile Steel w/Crown |
| Head set |
TH-1150 1” Threaded w/20mm Spacer |
| BB set |
FSA BB-7420-ST 68-103mm |
| COCKPIT |
Handle Bar |
HL Alloy All-Rounder 540mm |
| Handle Stem |
KALLOY KL-80 80mm -18°180mmQuill |
| Bar-tape/Grips |
Brown PVC |
| DRIVE TRAIN |
Shifter |
SHIMANO SL-RS45-R8A 8speed Revo-shift |
| Rear Derailleur |
SHIMANO ALTUS Smart-cage |
| Front Derailleur |
- |
| Chainwheel |
SUGINO G5PT-XD2 52T×170mm w/Double Gear Guard |
| Gear |
SHIMANO CS-HG31 11-34T 8speed |
| Chain |
SHIMANO CN-HG40 |
| Pedals |
WELLGO LU-T11 Alloy w/Rubber-insert |
| BRAKE |
Brakes |
SHIMANO BR-R353 Compact V-brake |
| Levers |
TEKTRO TS-384A 3-finger |
| WHEELS |
Hubs |
SHIMANO HB-QC300 / FH-QC300 32H 100×135mm |
| Spokes |
14G Stainless |
| Rims |
SHINNING MT-96 20” ETRTO-451 Polish Silver 32H |
| Tires |
DURO 20×1-3/8 E/V |
| SEAT |
Saddle |
VELO Brown/Beige Touring RALEIGH-spec |
| Seat Pillar |
HL SP-207GB 27.2×300mm |
| ACCESSORIES |
Mudguards |
Raleigh original British-style Alloy Anodized w/adjustable stays |

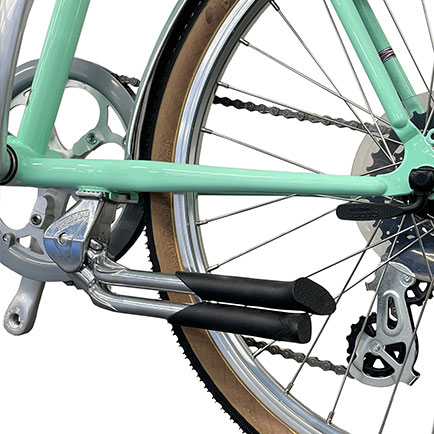

| Kick-stand |
Alloy Center Double Legs |
| |
Weight |
11.5kg(480mm) |
Geometry
| |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
α° |
β° |
N |
P |
Q |
R |
S |
| 480mm |
480 |
220 |
548 |
|
595 |
400 |
995 |
40 |
-15 |
68 |
135 |
43 |
72.0 |
72.0 |
719 |
825 |
996 |
392 |
480 |
| 520mm |
520 |
260 |
558 |
|
605 |
400 |
1005 |
40 |
-15 |
68 |
135 |
43 |
72.0 |
72.0 |
757 |
863 |
1040 |
390 |
518 |
Suitable Rider's Height
| |
140 |
145 |
150 |
155 |
160 |
165 |
170 |
175 |
180 |
185 |
190 |
cm |
| 480mm |
|
|
|
|
|
|
|
|
|
|
|
|
| 520mm |
|
|
|
|
|
|
|
|
|
|
|
|
- 表示します適正乗車身長範囲、適正身長は標準的な体格による目安のもので、腕や脚の長さの個人差により前後することがあります。
ご購入の際は適切なサイズを販売店へご相談ください
※商品仕様、カラーその他は、予告なく変更される可能性があります
