Specification
| FRAME |
Size |
400, 450, 500, 530mm |
| Color |

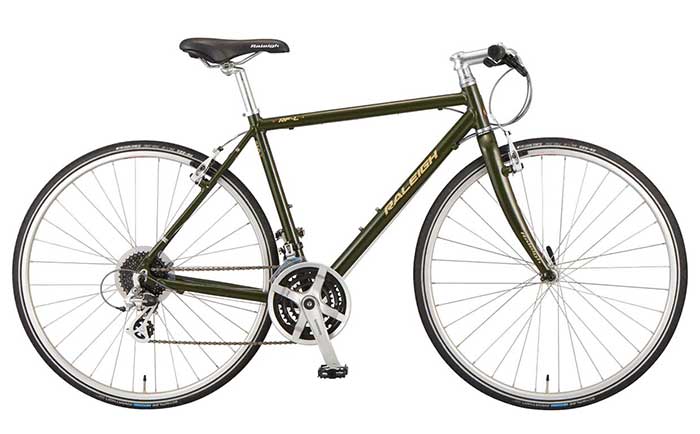

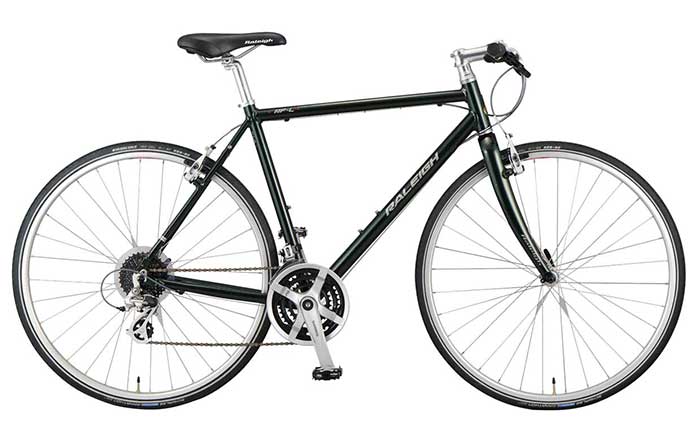

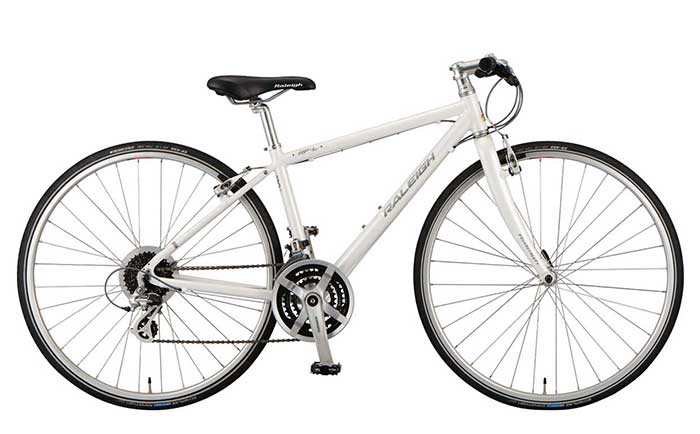

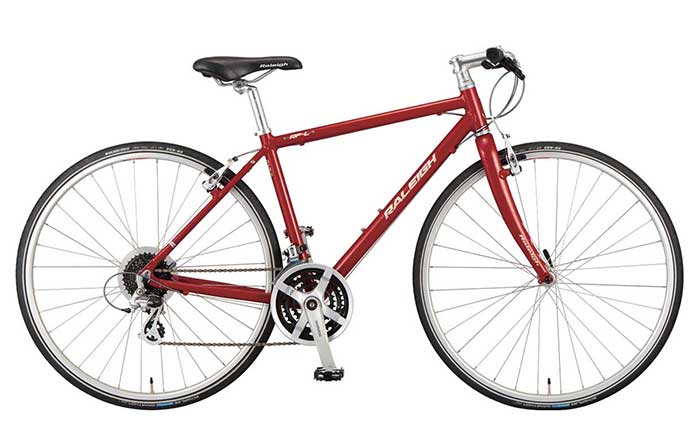

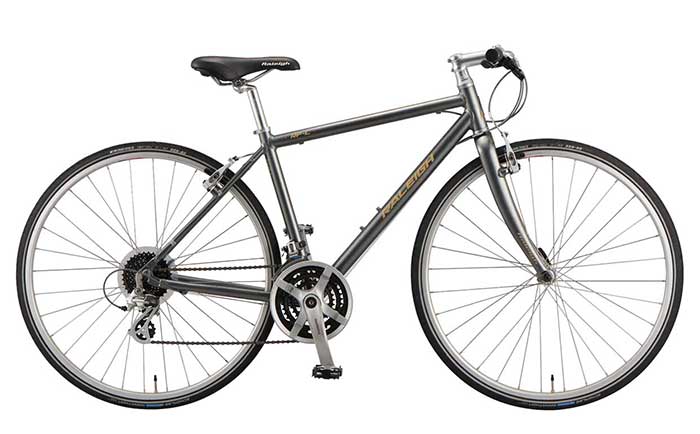

Pearl WHITE, Nottingham RED, Club GREEN, Aquamarine BLUE, Mistletoe KHAKI, Dark SILVER |
| Frame |

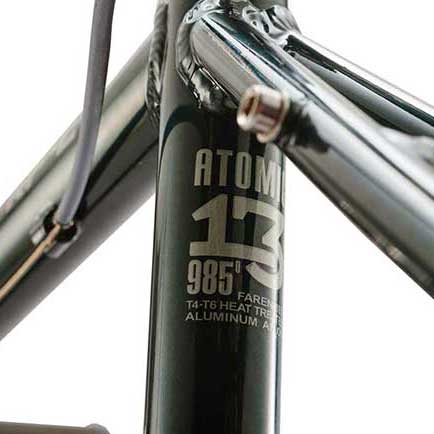

Aluminum Slim-Roundtube TIG Welding |
| Fork |
Aluminum Aero Blades |
| Head set |
FSA INTELLASET 1-1/8” AHEAD w/5,10,10,15mm Spacers |
| BB set |
SHIMANO BB-UN26 68-123mm |
| COCKPIT |

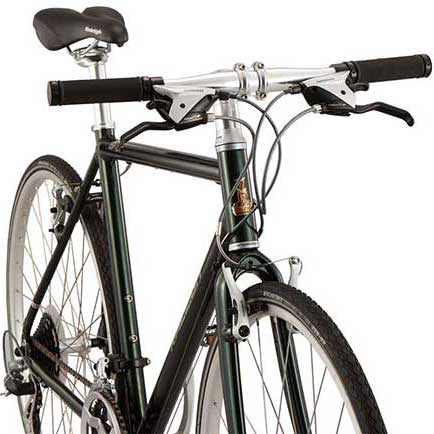

Handle Bar |
KALLOY AL-003 Flat-bar 540mm Φ31.8 |
| Handle Stem |
KALLOY AS-007N -7° Flip-Flop 80mm (400) / 100mm(450, 500, 530) |
| Bar-tape/Grips |
Double-density w/Alloy rings |
| DRIVE TRAIN |
Shifter |
SHIMANO ST-EF65 8×3speed EZ-Fire |
| Rear Derailleur |
SHIMANO ALTUS Smart-cage |
| Front Derailleur |
SHIMANO ALTUS 31.8mm |
| Chainwheel |
SHIMANO FC-TY501 48-38-28T×165mm(400) / 170mm(450, 500, 530) w/Gear-guard |
| Gear |
SHIMANO CS-HG31 11-32T 8speed |
| Chain |
SHIMANO CN-HG40 |
| Pedals |
WELLGO LU-893 Alloy |
| BRAKE |
Brakes |
SHIMANO BR-R353 Compact V-Brake |
| Levers |
SHIMANO ST-EF65 |
| WHEELS |
Hubs |
SHIMANO HB-TX500 / FH-TX500 32H 100×135 |
| Spokes |
14G Stainless |
| Rims |
ARAYA TX-733 700C SILVER 32H |
| Tires |
SCHWALBE 700×28C MARATHON GREEN GUARD F/V |
| SEAT |
Saddle |
VELO BLACK CITY RALEIGH-spec |
| Seat Pillar |
KALLOY SP-265 27.2×300 |
| |
Weight |
11.5kg |
Geometry
| |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
α° |
β° |
N |
P |
Q |
R |
S |
| 400mm |
400 |
95 |
509 |
525 |
590 |
425 |
1008 |
45 |
60 |
68 |
135 |
68 |
71.5 |
75.0 |
721 |
736 |
913 |
386 |
519 |
| 450mm |
450 |
110 |
525 |
544 |
595 |
525 |
1013 |
45 |
60 |
68 |
135 |
65 |
72.0 |
74.0 |
752 |
783 |
960 |
390 |
565 |
| 500mm |
500 |
110 |
547 |
564 |
600 |
425 |
1018 |
45 |
60 |
68 |
135 |
62 |
72.5 |
73.0 |
774 |
828 |
1005 |
400 |
537 |
| 530mm |
530 |
125 |
560 |
574 |
610 |
425 |
1028 |
45 |
60 |
68 |
135 |
61 |
72.5 |
73.0 |
796 |
856 |
1033 |
405 |
551 |
Suitable Rider's Height
| |
140 |
145 |
150 |
155 |
160 |
165 |
170 |
175 |
180 |
185 |
190 |
cm |
| 450mm |
|
|
|
|
|
|
|
|
|
|
|
|
| 480mm |
|
|
|
|
|
|
|
|
|
|
|
|
| 510mm |
|
|
|
|
|
|
|
|
|
|
|
|
| 540mm |
|
|
|
|
|
|
|
|
|
|
|
|
- 表示します適正乗車身長範囲、適正身長は標準的な体格による目安のもので、腕や脚の長さの個人差により前後することがあります。
ご購入の際は適切なサイズを販売店へご相談ください
※商品仕様、カラーその他は、予告なく変更される可能性があります
