Specification
| FRAME |
Size |
480, 520, 560mm |
| Color |
Brown BLACK, Club GREEN |
| Frame |
Full Cr-Mo Mid-size D.B. TIG Welding |
| Fork |
Cr-Mo w/Investment-cast Crown |
| Head set |
FSA INTELLASET 1-1/8”AHEAD w/5,10,10,15mm Spacers |
| BB set |
SHIMANO CLARIS |
| COCKPIT |
Handle Bar |
KALLOY HBL-001 Flair Drop 400mm, 12°Φ31.8 |
| Handle Stem |
KALLOY AS-007N -17° Flip-Flop 80mm(480) / 90mm(520) / 100mm(560) |
| Bar-tape/Grips |
Diamond-pattern w/RALEIGH Logos |
| DRIVE TRAIN |
Shifter |
SHIMANO CLARIS 8×2speed Dual-Control Levers W/Cable adjusters for Downtube-Levers |
| Rear Derailleur |
SHIMANO CLARIS SS |
| Front Derailleur |
SHIMANO CLARIS 28.6mm |
| Chainwheel |
SHIMANO CLARIS 50-34T w/Gear-guard ×170mm |
| Gear |
SHIMANO CS-HG31-8 11-32T 8speed |
| Chain |
SHIMANO CN-HG40 |
| Pedals |
WELLGO LU-962 Alloy Compact |
| BRAKE |
Brakes |

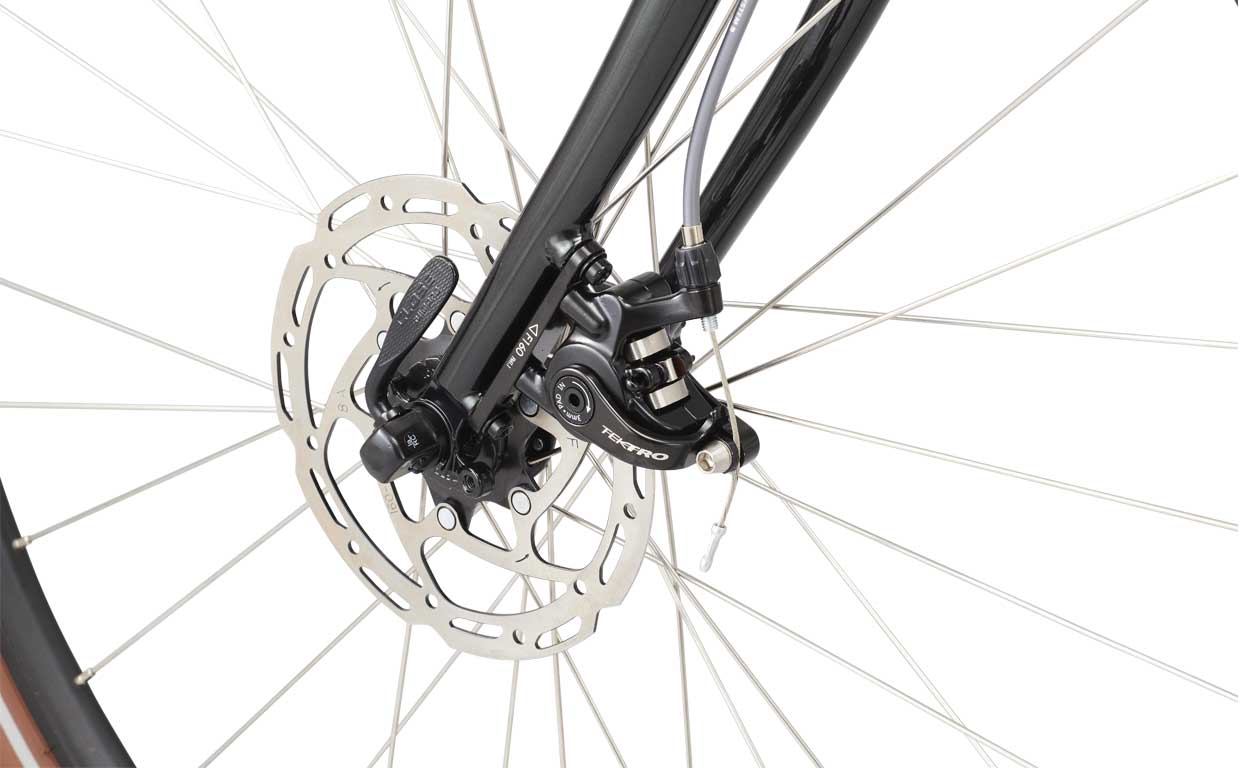

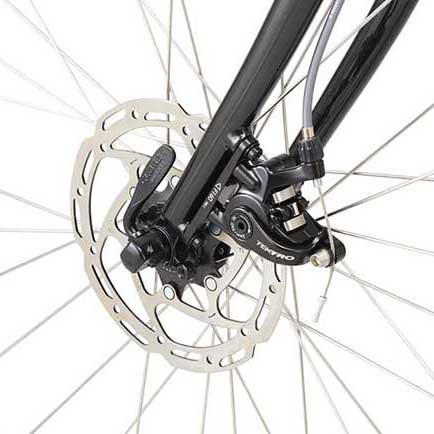

TEKTRO MD-C550 Dual piston Actuated Mechanical Disc Brake |
| Levers |
SHIMANO CLARIS Dual-control Levers |
| WHEELS |
Hubs |
SHIMANO HB-TX505 / FH-TX505 32H 100x135 |
| Spokes |
14G Stainless |
| Rims |
ALEXRIMS CX24 700C Black 32H |
| Tires |
CST Metropolytan Palmbay 700x40C F/V |
| SEAT |
Saddle |
prologo Kappa K3 Black Semi-Round |
| Seat Pillar |
KALLOY SP-265 27.2×300mm |
| |
Weight |
12.5kg(520mm) |
Geometry
| |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
α° |
β° |
N |
P |
Q |
R |
S |
| 480mm |
480 |
80 |
504 |
514 |
585 |
420 |
995 |
50 |
70 |
68 |
135 |
66 |
71.5 |
75.5 |
762 |
818 |
981 |
380 |
514 |
| 520mm |
520 |
80 |
533 |
535 |
585 |
420 |
995 |
50 |
70 |
68 |
135 |
66 |
71.5 |
74.5 |
779 |
855 |
1018 |
380 |
514 |
| 560mm |
560 |
100 |
542 |
|
595 |
420 |
1005 |
50 |
70 |
68 |
135 |
63 |
72.0 |
74.0 |
810 |
891 |
1054 |
387 |
535 |
Suitable Rider's Height
| |
140 |
145 |
150 |
155 |
160 |
165 |
170 |
175 |
180 |
185 |
190 |
cm |
| 480mm |
|
|
|
|
|
|
|
|
|
|
|
|
| 520mm |
|
|
|
|
|
|
|
|
|
|
|
|
| 560mm |
|
|
|
|
|
|
|
|
|
|
|
|
- 表示します適正乗車身長範囲、適正身長は標準的な体格による目安のもので、腕や脚の長さの個人差により前後することがあります。
ご購入の際は適切なサイズを販売店へご相談ください
※商品仕様、カラーその他は、予告なく変更される可能性があります
